Overview

hlabtop is a terminal and desktop application that monitors your homelab servers through SSH. It displays system metrics (CPU, memory, GPU, disk, containers) in configurable panes that you can arrange, resize, and reorder. Each pane runs a command on a remote host — interactive tools like htop accept your keyboard input, while view-only panes like nvidia-smi display live output.

This guide walks you through connecting, configuring, and using hlabtop’s main features.

Quick Start

1. Launch and Connect

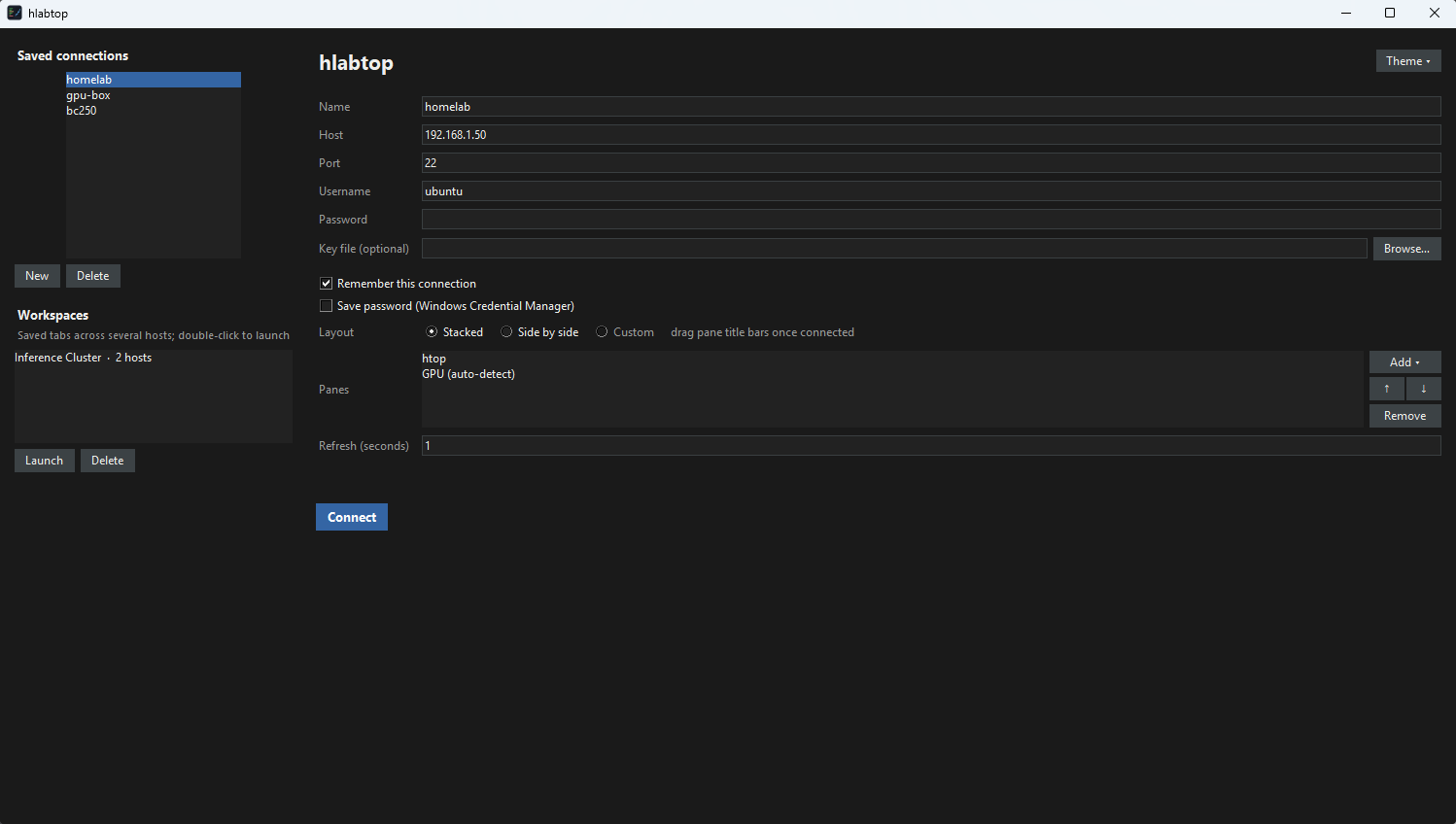

Run hlabtop (with no arguments) to open the desktop GUI. You will see the connection screen. Fill in:

Field	Example	Notes
Host	192.168.1.50 or myserver.local	IP address or hostname
Port	22	Leave blank for default
Username	ubuntu or root	Your SSH username
Password	(your password)	Or leave blank if using key auth

Check Remember this connection to save it for future sessions. Check Save password to store it in your OS secret store (Windows Credential Manager, macOS Keychain, or GNOME Keyring).

Click Connect.

2. Verify the Connection

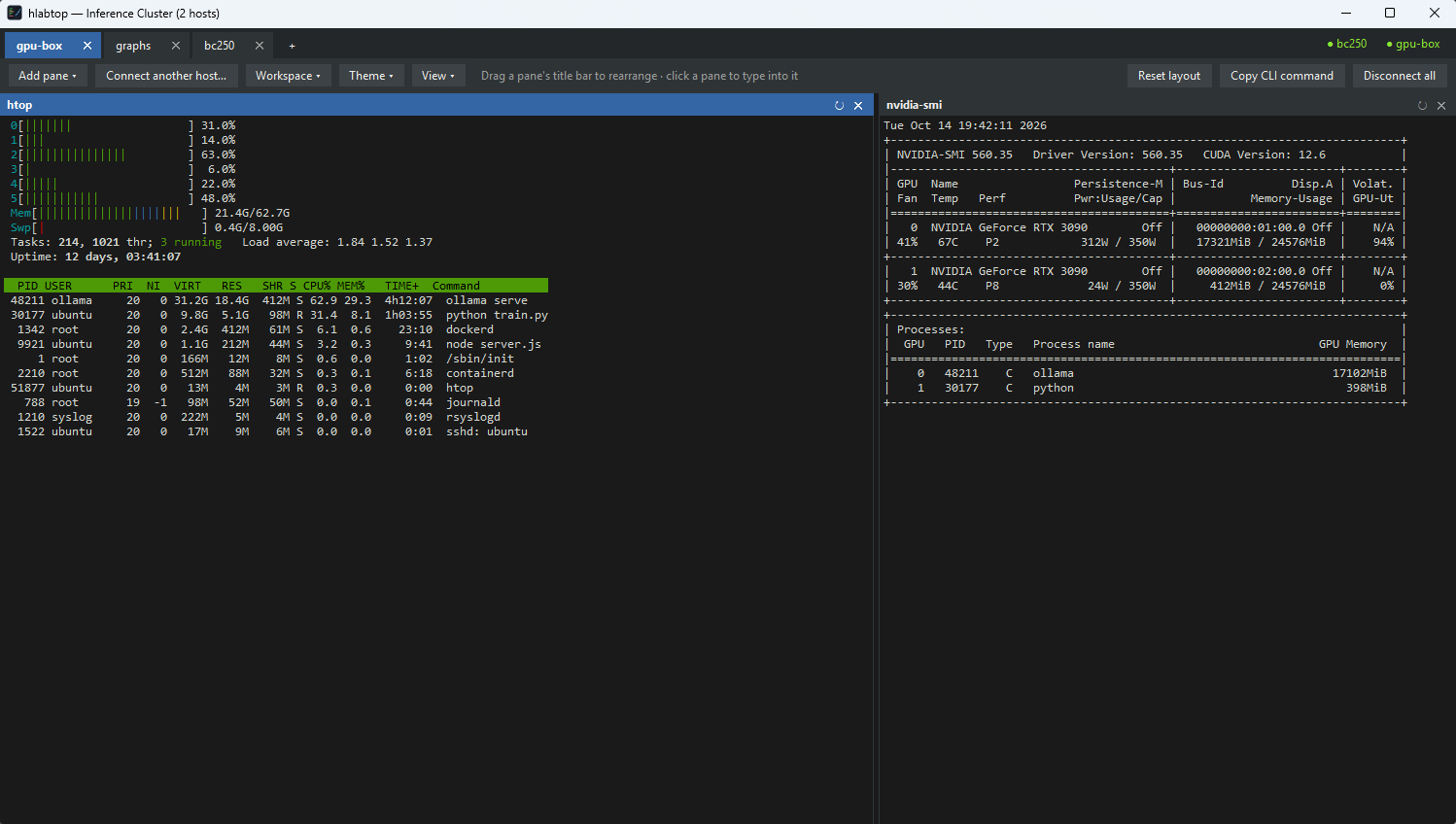

Once connected, you will see panes displaying output from commands running on the remote host. By default you get:

• htop — an interactive process viewer
• GPU — auto-detected GPU tool output (nvidia-smi for NVIDIA, rocm-smi for AMD)

A colored dot per host at the right of the tab bar shows its connection status (green = connected, yellow = reconnecting, red = failed). On a dashboard that mixes hosts, each pane’s title also names its host.

Understanding Panes

Panes are the building blocks of hlabtop. Each pane runs a command on a remote host and displays its output.

Built-in Presets

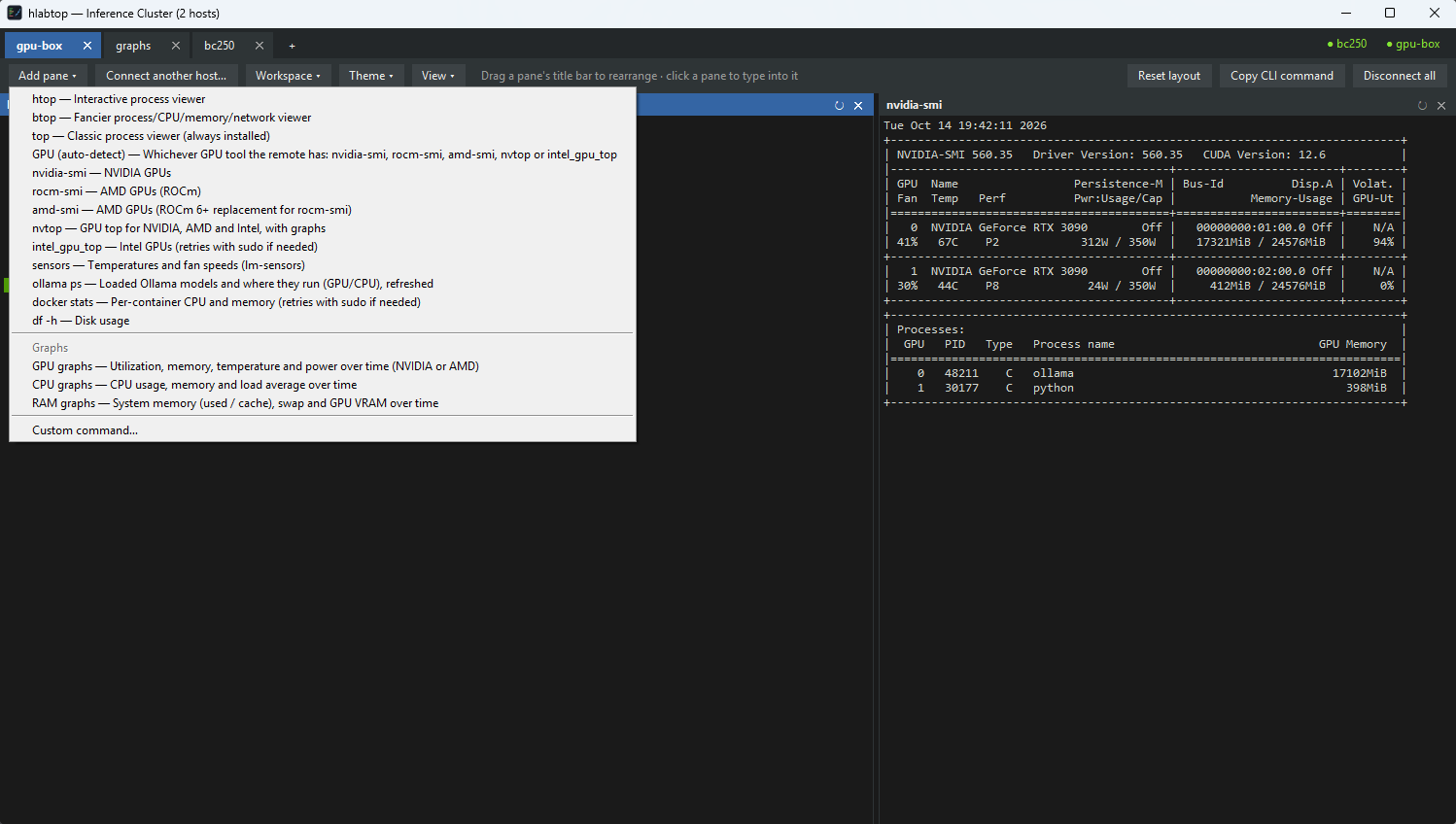

hlabtop includes presets for common monitoring tools:

Preset	Command	Interactive	Description
htop, btop, top	process viewer	Yes	Interactive process viewer
gpu	auto-detects first available GPU tool	No	Works on NVIDIA, AMD, and Intel
nvidia-smi	watch nvidia-smi	No	NVIDIA GPU metrics
rocm-smi	watch rocm-smi	No	AMD ROCm metrics
amd-smi	watch amd-smi monitor	No	AMD metrics (ROCm 6+ replacement for rocm-smi)
nvtop	nvtop	Yes	GPU tool with graphs (NVIDIA/AMD/Intel)
intel_gpu_top	intel_gpu_top	Yes	Intel GPU monitoring
sensors	watch sensors	No	Temperature and fan readings (lm-sensors)
ollama	watch ollama ps	No	Loaded Ollama models and GPU/CPU placement
docker	docker stats	Yes	Per-container CPU/memory usage (retries with sudo if needed, so you can type the password in the pane)
disk	watch df -h	No	Disk usage

Custom Commands

Any preset name not recognized is treated as a custom shell command:

hlabtop myserver --pane "tail -f /var/log/syslog" --pane "uptime"

In the GUI (Add pane ▾ ▸ host ▸ Custom command…), after the command and a title you’re asked:

1. “Re-run it every refresh interval (like watch)?” — Yes for commands that print once and exit (ollama ps, df -h); hlabtop re-runs them for you.
2. If not: “Forward keyboard and mouse to this command?” — Yes for interactive programs (top, less), No for view-only output (tail -f).

Commands that run once and exit (like ollama ps) show their output followed by the exit status. Press Enter or click the pane to restart it.

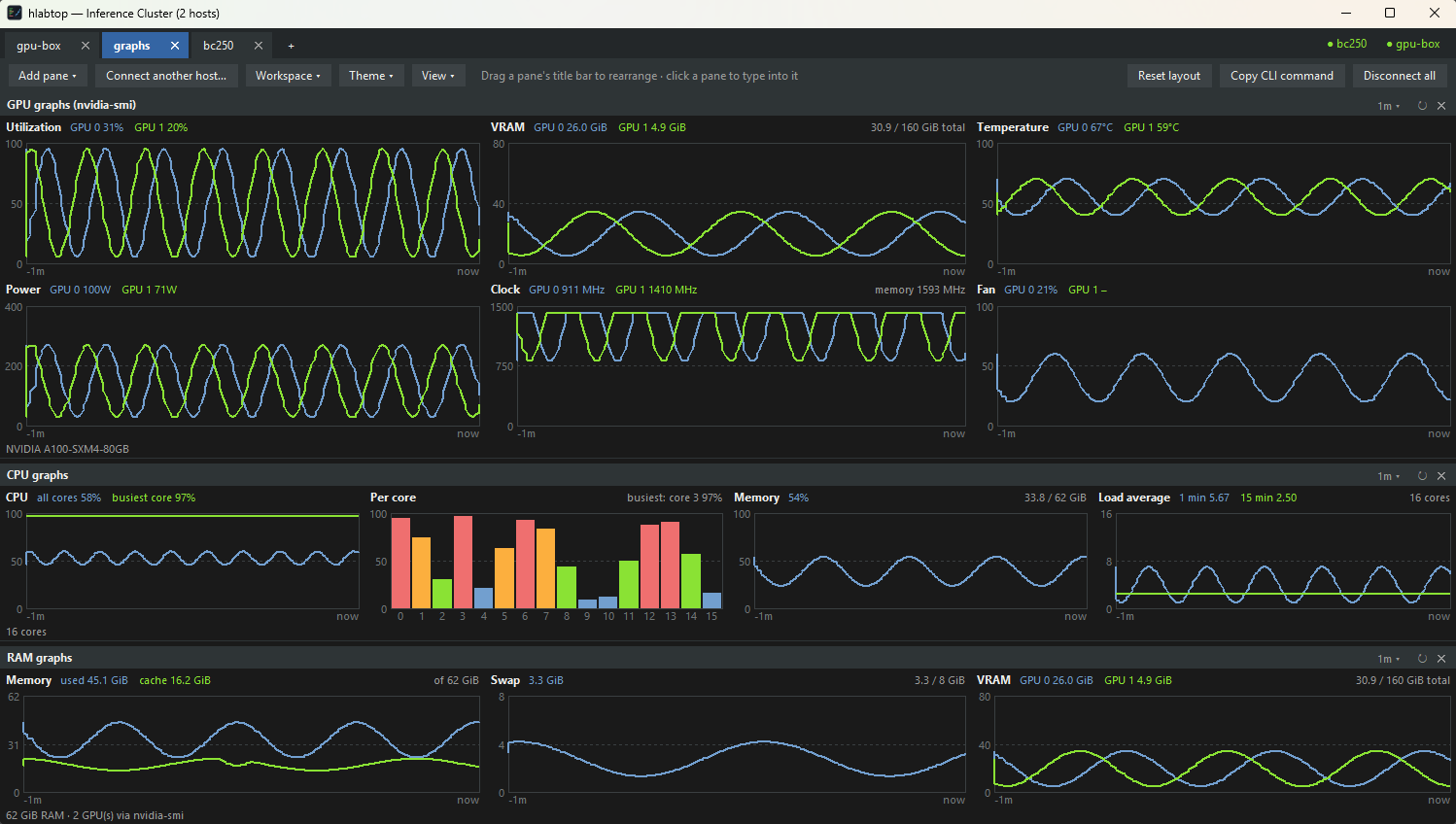

Graph Panes

Three special panes chart metrics over time instead of displaying live output:

Graph Preset	Monitors
gpu-graph	GPU utilization, VRAM, temperature, power, clocks, fan speed
ram-graph	System memory (used/cache/swap), GPU VRAM
cpu-graph	CPU usage, busiest core, per-core bars, memory, load average

Features:

• Click the time-range button in the pane’s title bar (e.g. 5m ▾) to switch between 1, 5, 15 and 60 minutes
• Hover over charts in the GUI to see exact values at that point
• If the connection drops, sampling resumes after reconnect with a gap shown in the chart
• Graphs sample every refresh interval (default 1s, configurable with --interval)

Configuring the Layout

Desktop GUI: Drag and Drop

Panes can be arranged in any mix of side-by-side and stacked groups:

1. Drag a pane by its title bar and drop it onto another pane
2. Drop near an edge — the pane slides beside the target (a blue box previews placement)
3. Drop in the middle — the panes swap places
4. Resize — drag the dividers between panes

Terminal UI: Layout Strings

In terminal mode, layouts are defined as text strings:

# Horizontal arrangement (side by side)
hlabtop mybox --layout "horizontal" --pane htop --pane gpu

# Vertical arrangement (stacked)
hlabtop mybox --layout "vertical" --pane htop --pane gpu

# Mixed: htop on left (60%), GPU and sensors stacked on right (40%)
hlabtop mybox --layout "h(htop:3,v(gpu,sensors):2)"

# Deeply nested groups with size ratios
hlabtop mybox --layout "h(gpu-graph:2, v(htop:1, ram-graph:1))"

Layout syntax:

• h(...) — panes side by side
• v(...) — panes stacked
• :N — relative size weight (e.g., :3 means 3 parts vs 2 parts)
• Nested groups: h(gpu, v(htop, sensors)) — GPU on left, htop above sensors on right

A preset name in the layout doesn’t need its own --pane: it is matched to a --pane of that preset if you gave one, and otherwise added for you. Any --pane the layout doesn’t mention is added at the end.

For custom commands, refer to panes by number (1-indexed):

hlabtop mybox --pane htop --pane "tail -f /var/log/syslog" --layout "v(h(1,gpu),2)"

Copying a Layout to CLI

In the GUI, after arranging your panes visually, click Copy CLI command to copy the equivalent --layout string to your clipboard.

Saving Layouts

• Per-connection: Layout changes to a saved connection are saved automatically
• Workspaces: Save an entire window layout (tabs, panes, arrangement) as a workspace

Multiple Hosts

Watch several machines from one window.

Desktop GUI

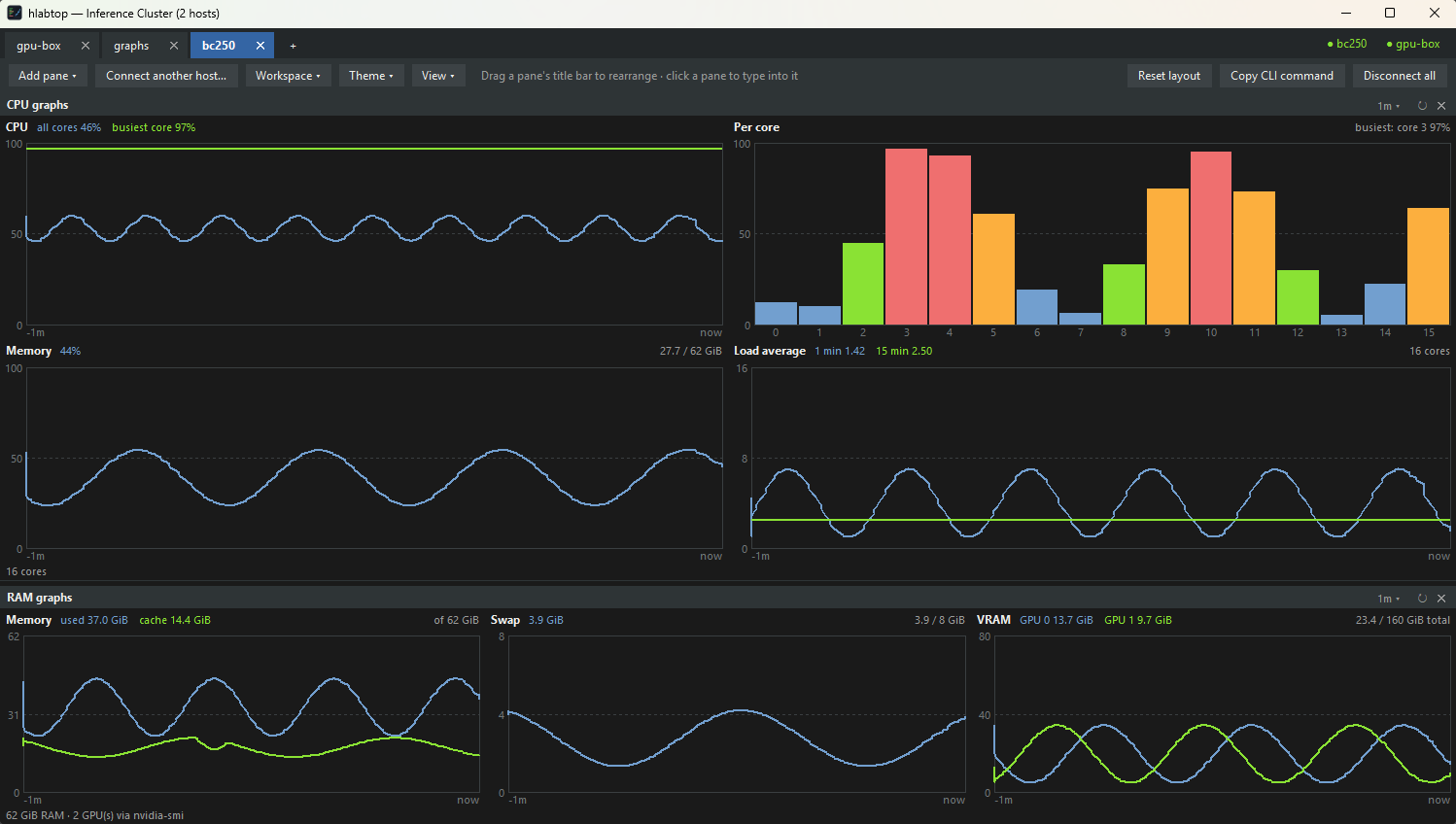

1. Click the + button on the tab bar (or Connect another host…) to add a second SSH connection
2. Each host gets its own tab with independent layout and panes
3. Add pane lets you pick which host to add a pane to — tabs can mix hosts
4. Connection dots at the right of the tab bar show status per host (click one for its menu):
   • Green = connected
   • Yellow = reconnecting
   • Red = failed (the menu has Reconnect now)

Terminal UI

Pass multiple hosts on the command line:

hlabtop gpu-node-1 gpu-node-2 gpu-node-3

Each host gets a tab. Switch tabs with Ctrl+PageDown / Ctrl+PageUp.

For a single dashboard mixing hosts:

hlabtop node1 node2 --layout "v(h(gpu-graph@node1,gpu-graph@node2):2,htop@node1)"

Pane host assignment uses @: sensors@node2 puts that pane on node2 only.

Workspaces

A workspace is a saved window: tabs, panes, host assignments, and layout.

Creating a Workspace

1. Arrange your panes and connect your hosts

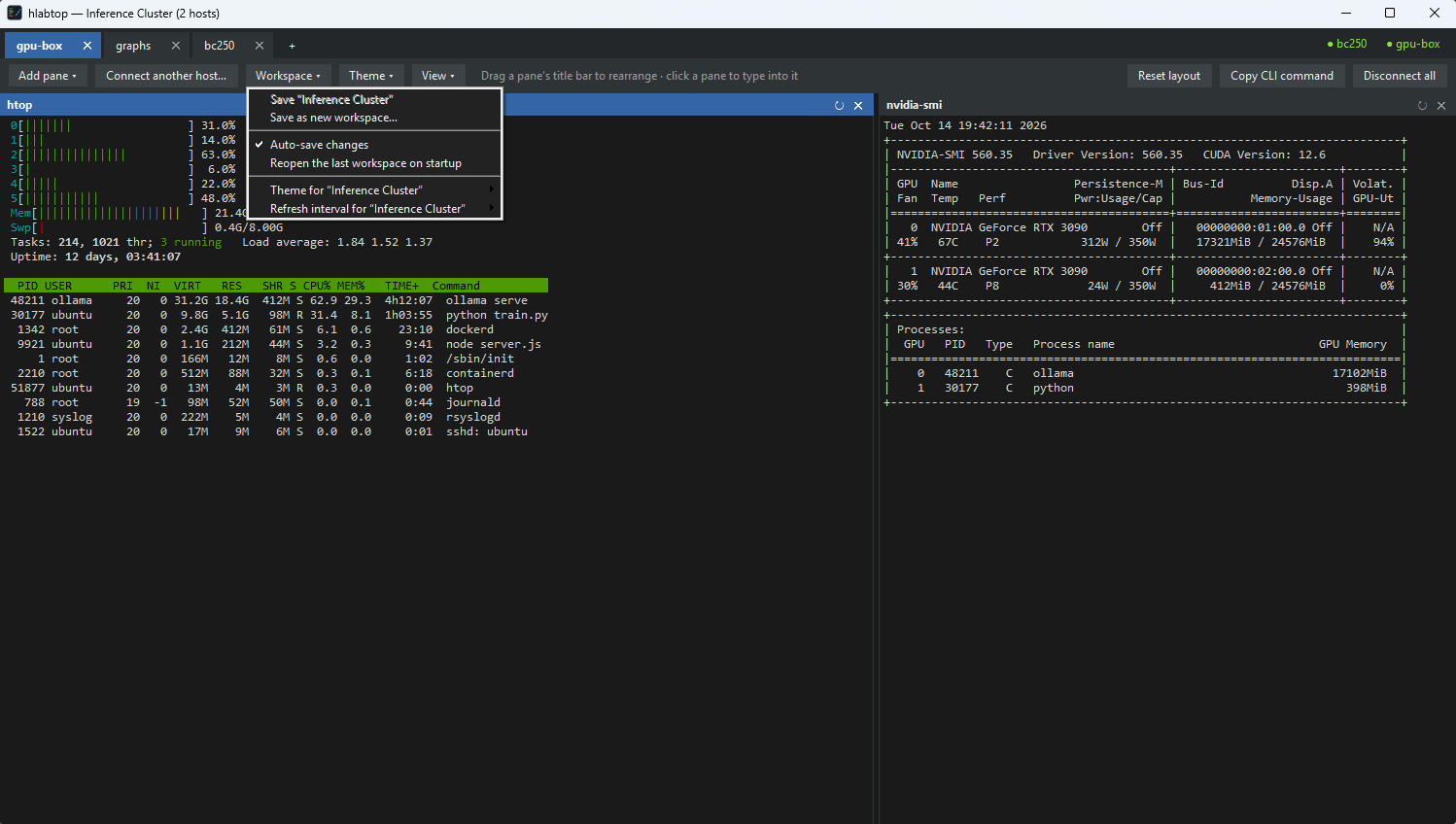

2. Go to Workspace > Save as new workspace…
3. Give it a name (e.g., “Inference Cluster”)

Opening a Workspace

• GUI: Double-click the workspace name on the connect screen
• GUI (command line): hlabtop --workspace "Inference Cluster"
• Terminal UI: hlabtop --workspace "Inference Cluster" --cli

Workspace Features

Feature	How to Access	Description
Save	Workspace > Save “name”	Save current state to an existing workspace
Switch	Workspace > Switch to workspace	Close this workspace, open another
Auto-save toggle	Workspace > Auto-save changes	Pause auto-save; title shows dot while unsaved
Theme per workspace	Workspace > Theme for …	Per-workspace color theme
Interval per workspace	Workspace > Refresh interval for …	Per-workspace refresh rate (e.g., 5s for large clusters)
Reopen last	Workspace > Reopen the last workspace on startup	Restore workspace on next launch

Themes

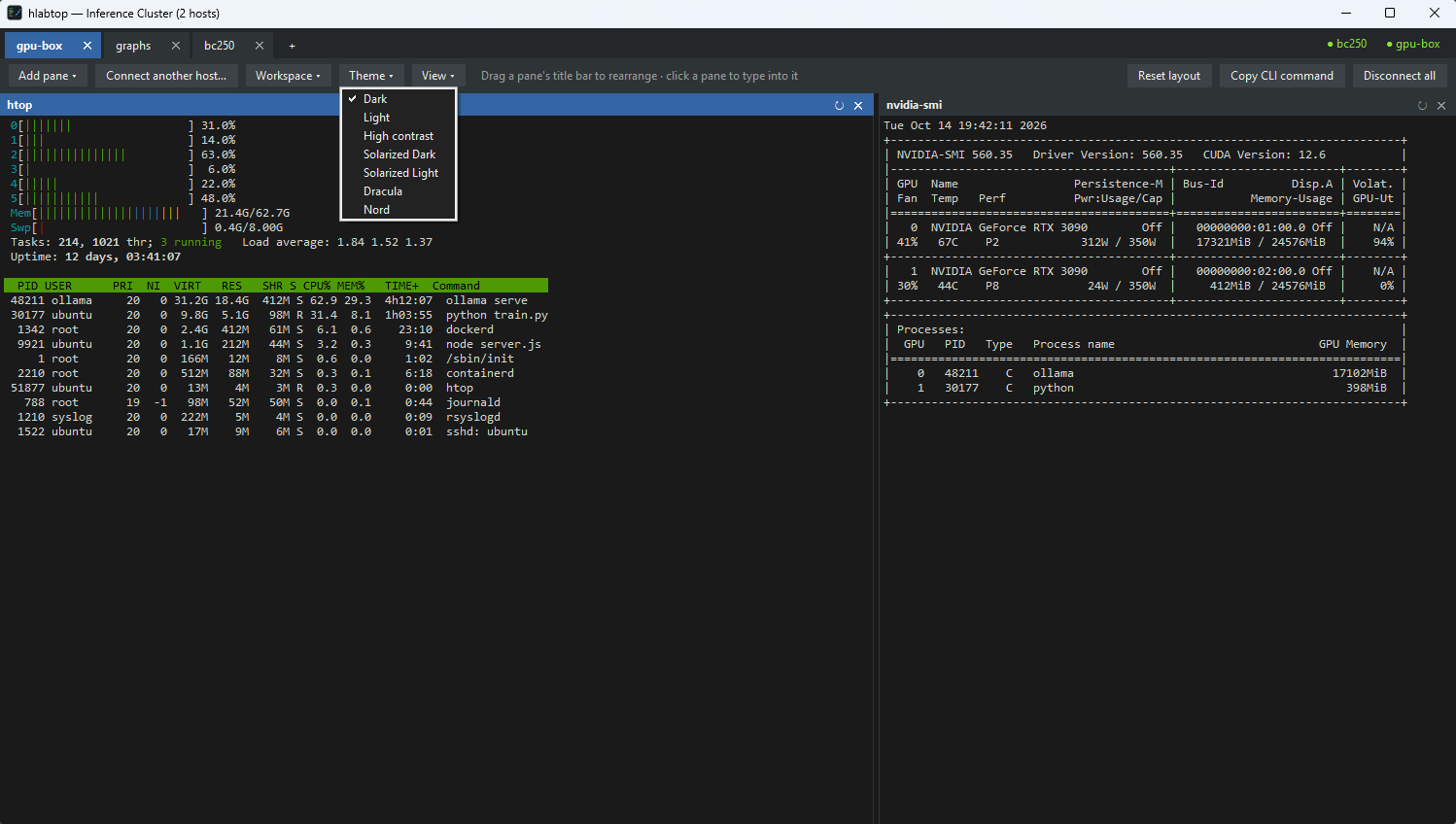

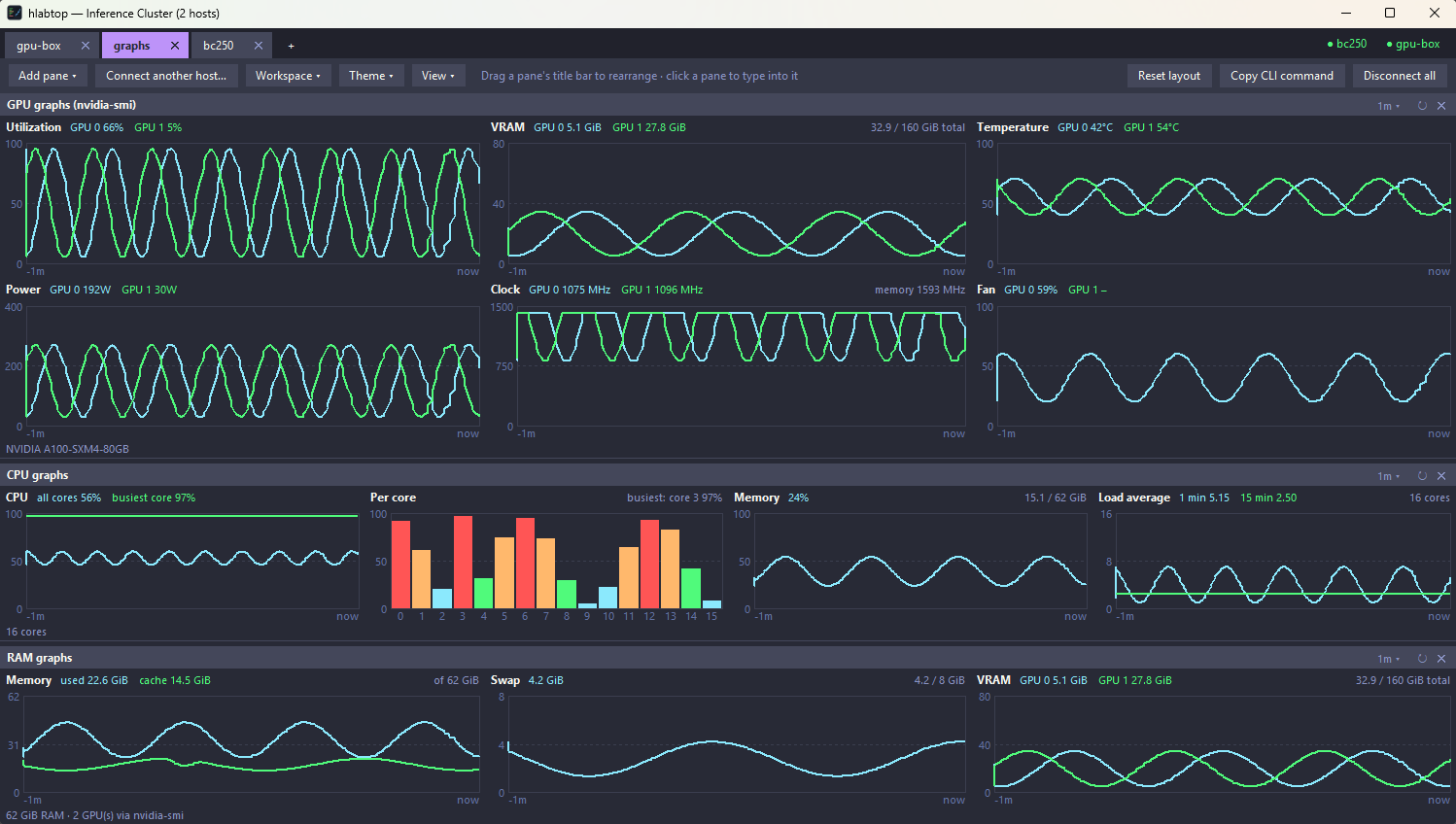

Change the color scheme from Theme in the menu bar:

• Dark (default)
• Light
• High contrast
• Solarized Dark / Solarized Light
• Dracula
• Nord

The theme switches instantly across all panes, tabs, graphs, and the terminal. Your choice is remembered.

Override per-launch from the command line:

hlabtop mybox --theme dracula

Auto-Reconnect

hlabtop monitors SSH connections and automatically reconnects if dropped:

• Detection: Up to 20 seconds for silent drops, a few seconds for hard drops
• Retry schedule: 1s, 2s, 5s, 10s, 20s, then every 30s
• During reconnect: Tab title shows Reconnecting… with a countdown
• Manual reconnect: Click Reconnect now (GUI) or wait for the automatic retry

When reconnected, panes restart their commands in the same layout. Graph history is preserved (with a gap during the outage).

The app will not reconnect if the host key changes (possible MITM) or if passwords are rejected after reconnect — these require manual intervention.

Authentication

hlabtop supports two authentication methods:

SSH Keys (Recommended)

hlabtop -i /path/to/private_key user@host

Or use your SSH agent (ssh-agent on Linux/macOS, Pageant on Windows). Keys stored in ~/.ssh/ are tried automatically.

Password Authentication

Enter the password in the GUI connect dialog. For the terminal UI, you are prompted on the console.

Passwords are stored in memory only. If you check Save password, they are stored in your OS secret store:

• Windows: Credential Manager
• macOS: Keychain
• Linux: GNOME Keyring or KWallet

Host Key Verification

The first time you connect to a host, hlabtop asks you to trust its SSH key (same as ssh -o StrictHostKeyChecking=ask). The key is remembered in ~/.ssh/known_hosts. If the key changes, reconnection stops and shows an error to prevent MITM attacks.

Graphs Deep Dive

GPU Graph

Displays per-GPU metrics:

• Utilization — percentage of compute utilization
• VRAM — memory used (GiB) against total card size
• Temperature — GPU core temperature
• Power — scaled to the card’s power limit
• Clock — graphics clock against max, with memory clock alongside
• Fan speed — only shown if the GPU reports fan data (datacenter cards are often passively cooled)

Reads nvidia-smi on NVIDIA systems, rocm-smi or amd-smi on AMD.

RAM Graph

Displays:

• System memory — used and cache (GiB) from /proc/meminfo
• Swap — swap space used
• GPU VRAM — included when a GPU tool is available

CPU Graph

Displays:

• Overall CPU usage — average across all cores
• Busiest core — shows single-threaded bottlenecks the average hides
• Per-core bars — color-coded load bars for each core
• Memory and load — memory used and load average with core count for scale

The CPU and RAM graphs work on any Linux box, reading from /proc; the GPU graph needs nvidia-smi, rocm-smi or amd-smi on the remote.

Docker and Root Commands

The docker and intel_gpu_top presets retry with sudo when they need to: the password prompt appears inside the pane — click it, type the password, press Enter.

For another command that needs root, add it as a custom command starting with sudo and answer Yes to “Forward keyboard and mouse to this command?”, so you can type the password in the pane.

To use Docker without a password at all:

sudo usermod -aG docker $USER
# Log out and back in for group membership to take effect

Warning: Docker group membership is effectively root access on the machine.

Wall Displays and Cycling

Configure hlabtop to run on a wall-mounted display:

Desktop GUI

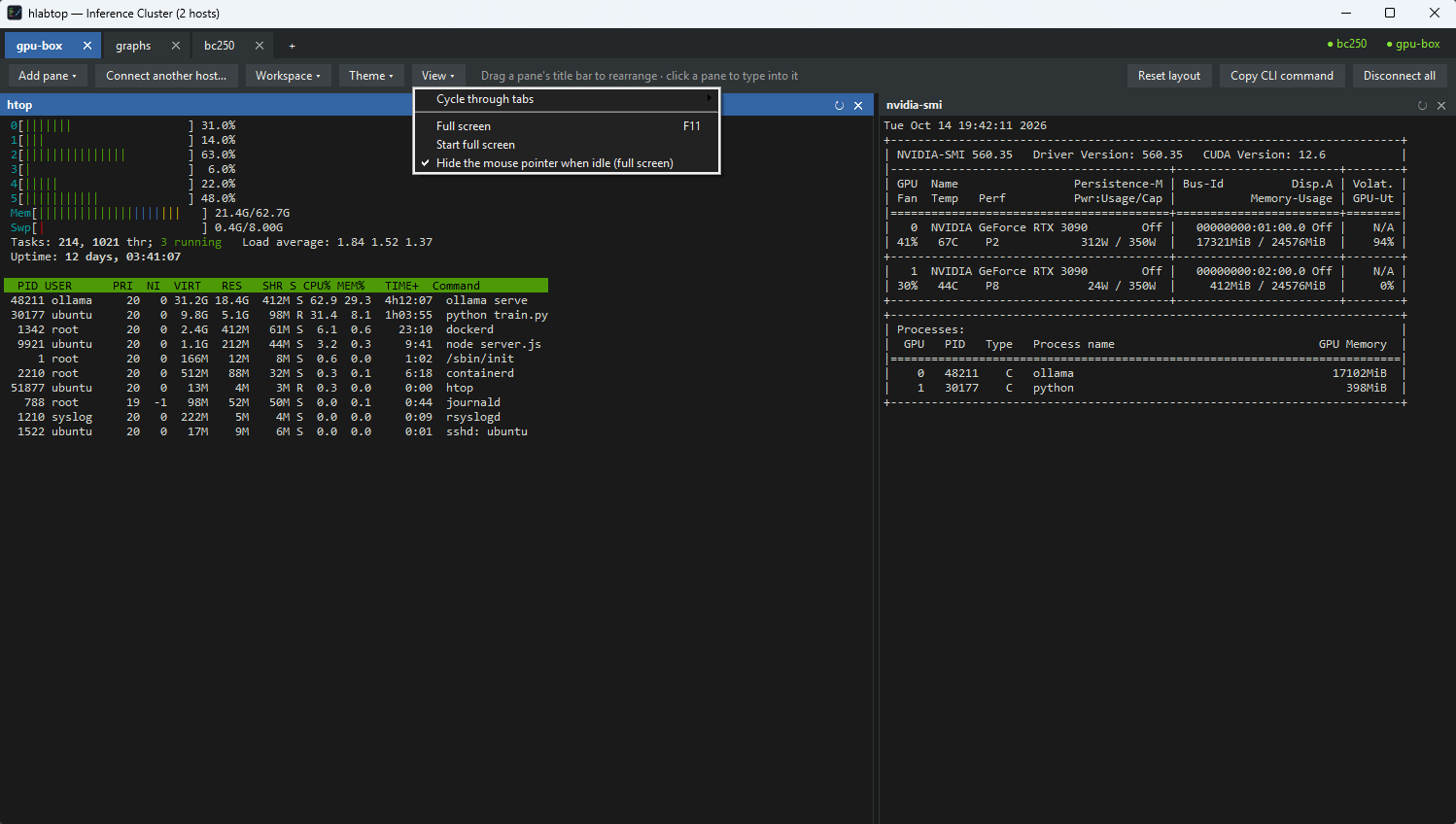

1. Go to View > Cycle through tabs
2. Select interval: 5, 10, 15, 30, 60 seconds, or custom
3. The cycling pauses while you use the mouse or keyboard, then resumes one period after you stop
4. Enable Full screen (F11) and Hide the mouse pointer when idle

From the command line

# GUI: open a workspace full screen, cycling every 15 seconds
hlabtop --workspace "Homelab" --cycle 15 --fullscreen

# Terminal UI: cycle through a workspace's tabs (make the terminal itself full screen)
hlabtop --workspace "Homelab" --cli --cycle 15

--cycle switches between tabs, so in the terminal UI it needs several hosts (hlabtop node1 node2 --cycle 15) or a workspace; with a single host it is rejected. It must be at least 1 second, or 0 to turn off a workspace’s saved cycling for that run. --fullscreen is GUI-only.

Fully Automatic Wall Display

For a display that boots and runs on its own:

1. Save a workspace with cycling enabled
2. Check Workspace > Reopen the last workspace on startup
3. Check View > Start full screen
4. Save all host passwords
5. Add hlabtop to the machine’s startup programs

Keybindings

Key	Action
F11	Toggle full screen (GUI)
Ctrl+PageDown / PageUp	Switch tabs (terminal UI)
Ctrl+Q	Quit the terminal UI
Enter	Restart a pane whose command exited

Important: Everything you type goes to the focused interactive pane (htop, nvtop, etc.). Press F1 in htop for its help. Click another pane (or its title bar) to give it focus; in the GUI the focused pane’s title bar turns blue.

Troubleshooting

Pane Shows “remote process exited”

The command on the remote host ended. Press Enter or click the pane to restart it. Common causes:

• The tool is not installed on the remote (e.g., nvidia-smi without NVIDIA drivers)
• You pressed q to quit htop on the remote
• The command was a one-shot command like ollama ps

Connection Fails with “Host key changed”

The remote server’s SSH key has changed. Verify it’s the correct server, then remove the old key from ~/.ssh/known_hosts and reconnect.

Docker Pane Shows Permission Denied

The docker preset retries with sudo and asks for the password inside the pane. To skip the password, add your SSH user to the docker group on the remote.

Graph Pane Shows No Data

• Ensure the GPU tools are installed on the remote (nvidia-smi, rocm-smi, etc.)
• Check that the connection is active (green dot at the right of the tab bar)
• Look at the pane’s error message for diagnostic details

Appendix: CLI Quick Reference

# Launch GUI (default)
hlabtop

# Terminal UI for a single host
hlabtop user@host

# Terminal UI with specific options
hlabtop -p 2222 -u admin -i ~/.ssh/mykey myserver --pane htop --pane gpu --pane sensors

# Terminal UI with multiple hosts
hlabtop node1 node2 node3 --pane htop --pane gpu-graph

# Terminal UI with custom layout
hlabtop mybox --layout "h(htop:3,v(gpu,sensors):2)" --pane gpu --pane sensors

# Terminal UI with theme and refresh interval
hlabtop mybox --theme dracula --interval 5

# List available presets
hlabtop --list-panes

# List saved workspaces
hlabtop --list-workspaces

# Open a workspace in terminal mode
hlabtop --workspace "My Cluster" --cli

# Skip host key verification (not recommended)
hlabtop mybox --insecure

# Full screen + tab cycling for wall displays (GUI)
hlabtop --workspace "Wall Display" --cycle 30 --fullscreen
